Feature - Map Service
URL http://<dynamic-layer-url>/<featureId>
Parent Resource Dynamic Layer
Child Resources Attachment Infos, HTML Popup
Required Capability Data

Description

This resource is supported from 10.1 onwards.

The feature resource represents a single feature in a dynamic layer in a map service.

The feature resource has 1 child resource:

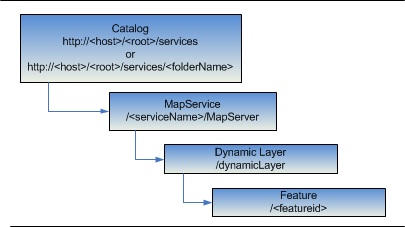

Resource Hierarchy

Feature

Parameters

Parameter Details
f Description: The response format. The default response format is html.

Values: html | json
layer Description: Dynamic layer / table source definition.

Note:
  • Use "gdbVersion" on dynamic map layer definition to specify an alternate geodatabase version.
Syntax:
  {
    "id": <layerOrTableId>,
    "source": <layer source>
  }
Example:
{
  "id": 101,
  "source":
  {
    "type": "mapLayer",
    "mapLayerId": 0,
    "gdbVersion": "SDE.DynamicLayers"
  }
}
returnZ Description: If true, Z values will be included in the results if the features have Z values. Otherwise Z values are not returned. The default is false.
returnM Description: If true, M values will be included in the results if the features have M values. Otherwise M values are not returned. The default is false.

Example Usage

Example 1: Feature resource for feature in a dynamic layer (feature with objectId 1 from mapLayer with id 3):

http://servicesbeta2.esri.com/arcgis/rest/services/Census/MapServer/dynamicLayer/1?layer={"id":101,"source":{"type":"mapLayer","mapLayerId":3}}&where=1=1&f=pjson

JSON Response Syntax

{ "feature" : <feature> }

JSON Response Example

{
  "feature" :
  {
    "attributes" : {
      "OBJECTID" : 7,
      "BTID" : 1,
      "NAME" : "NOTNAMED",
      "LAT" : 28,
      "LONG" : -94.8,
      "WIND_KTS" : 80,
      "PRESSURE" : 0,
      "CAT" : "H1",
      "BASIN" : "North Atlantic",
      "TRACK_DATE" : -3740169600000,
      "Shape_Length" : 0.600000000000023
    }
    ,
    "geometry" :
    {
      "paths" :
      [
        [
          [-94.7999999999999, 28.0000000000001],
          [-95.3999999999999, 28.0000000000001]
        ]
      ]
    }
  }
}
